MYSQL 主从模式监控mysql ​

搭建mysql 主从环境 ​

1. docker compose 部署 ​
yaml
version: "3"

services:
  mysql-master:
    image: docker.m.daocloud.io/library/mysql:8.0.40
    container_name: mysql-master
    command: --server-id=1 --log-bin=mysql-bin --binlog-format=row
    environment:
      MYSQL_ROOT_PASSWORD: qiaoke
    ports:
      - "3307:3306"


  mysql-slave:
    image: docker.m.daocloud.io/library/mysql:8.0.40
    container_name: mysql-slave
    depends_on:
      - mysql-master
    command: --server-id=2 --log-bin=mysql-bin --binlog-format=row
    environment:
      MYSQL_ROOT_PASSWORD: qiaoke
    ports:
      - "3308:3306"
2. 配置主从复制 ​

主节点配置

bash
CREATE USER 'replication_user'@'%' IDENTIFIED BY 'qiaoke';
GRANT REPLICATION SLAVE ON *.* TO 'replication_user'@'%';
ALTER USER 'replication_user'@'%' IDENTIFIED WITH mysql_native_password BY 'qiaoke';
FLUSH PRIVILEGES;

FLUSH TABLES WITH READ LOCK;  -- 锁定表以确保数据一致性
SHOW MASTER STATUS;            -- 查看当前日志文件和位置

从节点配置

CHANGE MASTER TO
    MASTER_HOST='mysql-master',
    MASTER_USER='replication_user',
    MASTER_PASSWORD='qiaoke',
    MASTER_LOG_FILE='mysql-bin.000003',  -- 替换为主服务器的日志文件名
    MASTER_LOG_POS=1176;                  -- 替换为主服务器的日志位置

START SLAVE;

# 查看复制状态
SHOW SLAVE STATUS\G;

Zabbix ​

1. 安装mysql 并配置监控所需账户 patrol ​
mysql -u root -p
CREATE USER 'patrol'@'%' IDENTIFIED BY 'patrol';
GRANT REPLICATION CLIENT,PROCESS,SHOW DATABASES,SHOW VIEW ON *.* TO 'patrol'@'%';
quit
2. zabbix 前端操作 ​

https://www.zabbix.com/documentation/current/en/manual/guides/monitor_mysql

https://blog.csdn.net/Eternity_zzh/article/details/126756948

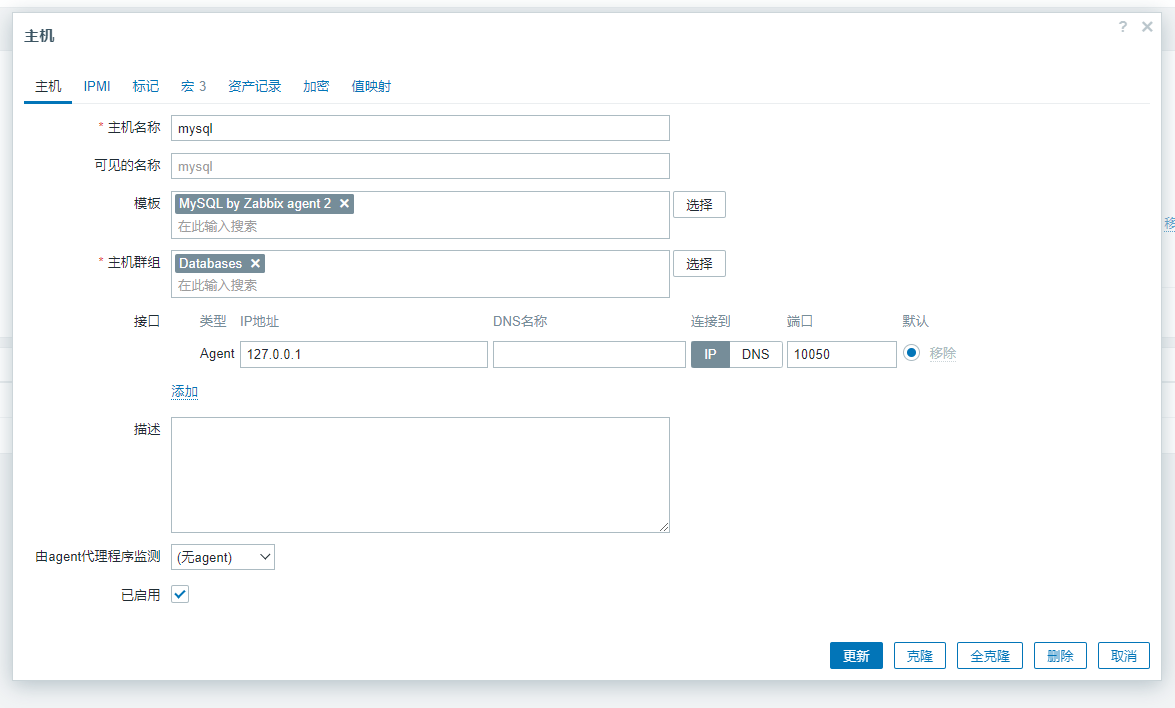

2.1 创建主机 ​

image-20241102024533045

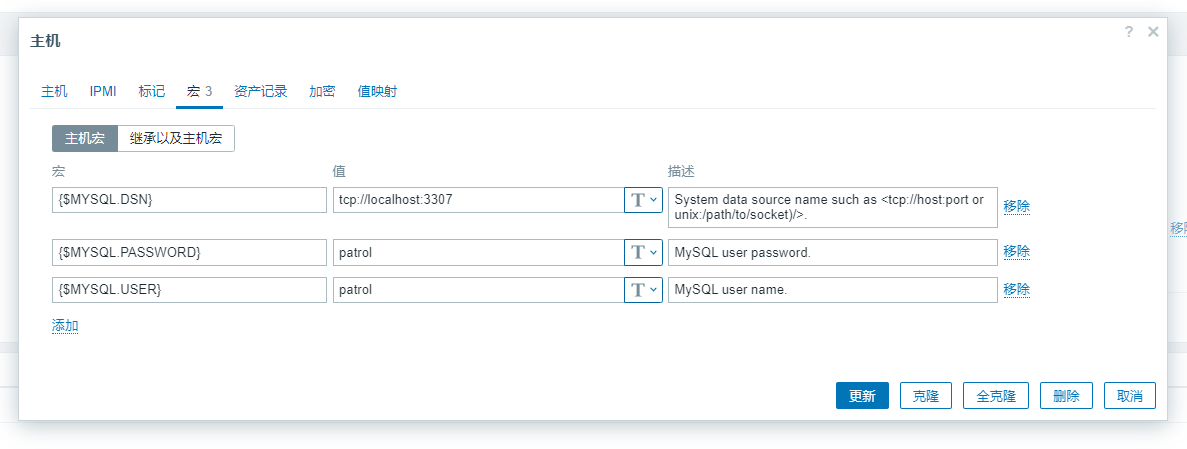

2.2 配置宏变量 ​

image-20241102024559943

2.3 自定义从库延迟指标 ​

添加自定义监控脚本

bash
#!/bin/bash

# 获取从库延迟时间
res=$(mysql -h 127.0.0.1 -P 3308 -upatrol -ppatrol -e "show slave status\G" 2> /dev/null |awk '/Seconds_Behind_Master/ {print $2}')

echo $res

添加自定义监控配置

bash
vim /etc/zabbix/zabbix_agent2.d/plugins.d/userparameter_mysql.conf

UserParameter=check_mysqlyc,/bin/bash /etc/zabbix/scripts/mysql.sh

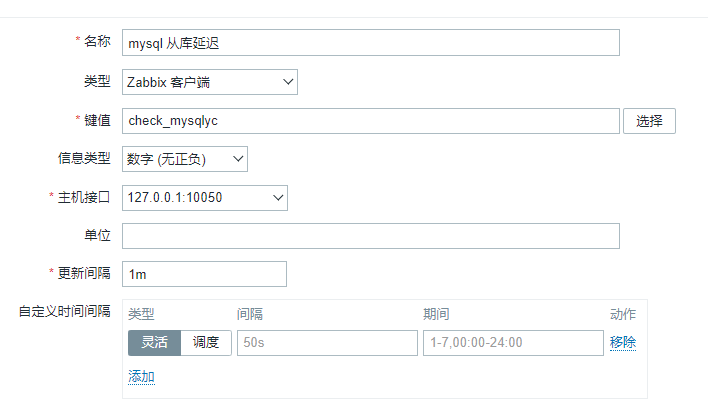

zabbix 平台添加监控项

image-20241102034806471

4. 配置告警 ​

zabbix 默认模板包含相应告警数据

5. 接入grafana ​

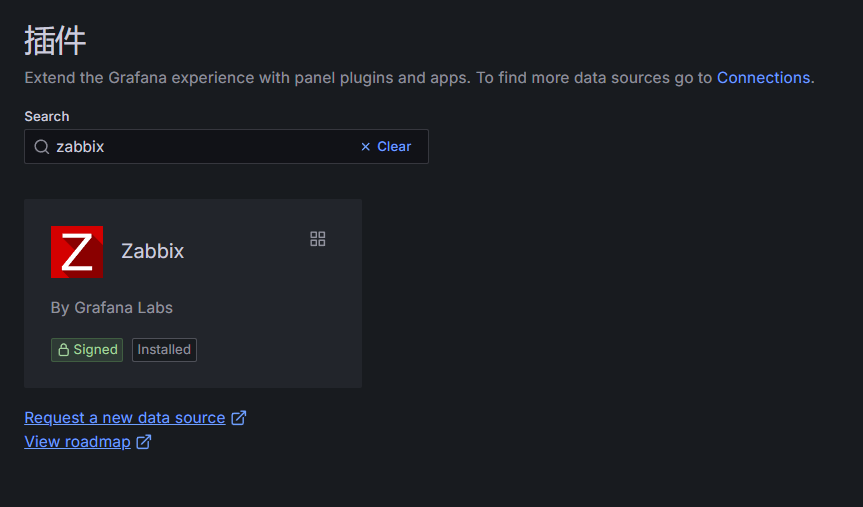

grafana 安装zabbix插件

image-20241102042339235

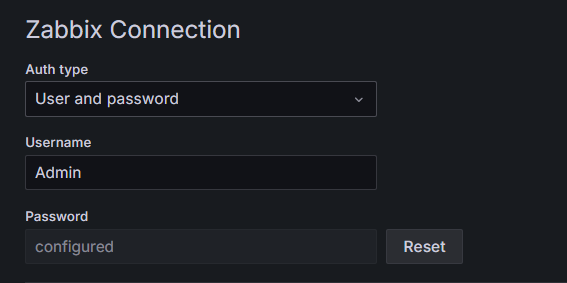

添加zabbix数据源配置参数

image-20241102042429594

image-20241102042443704

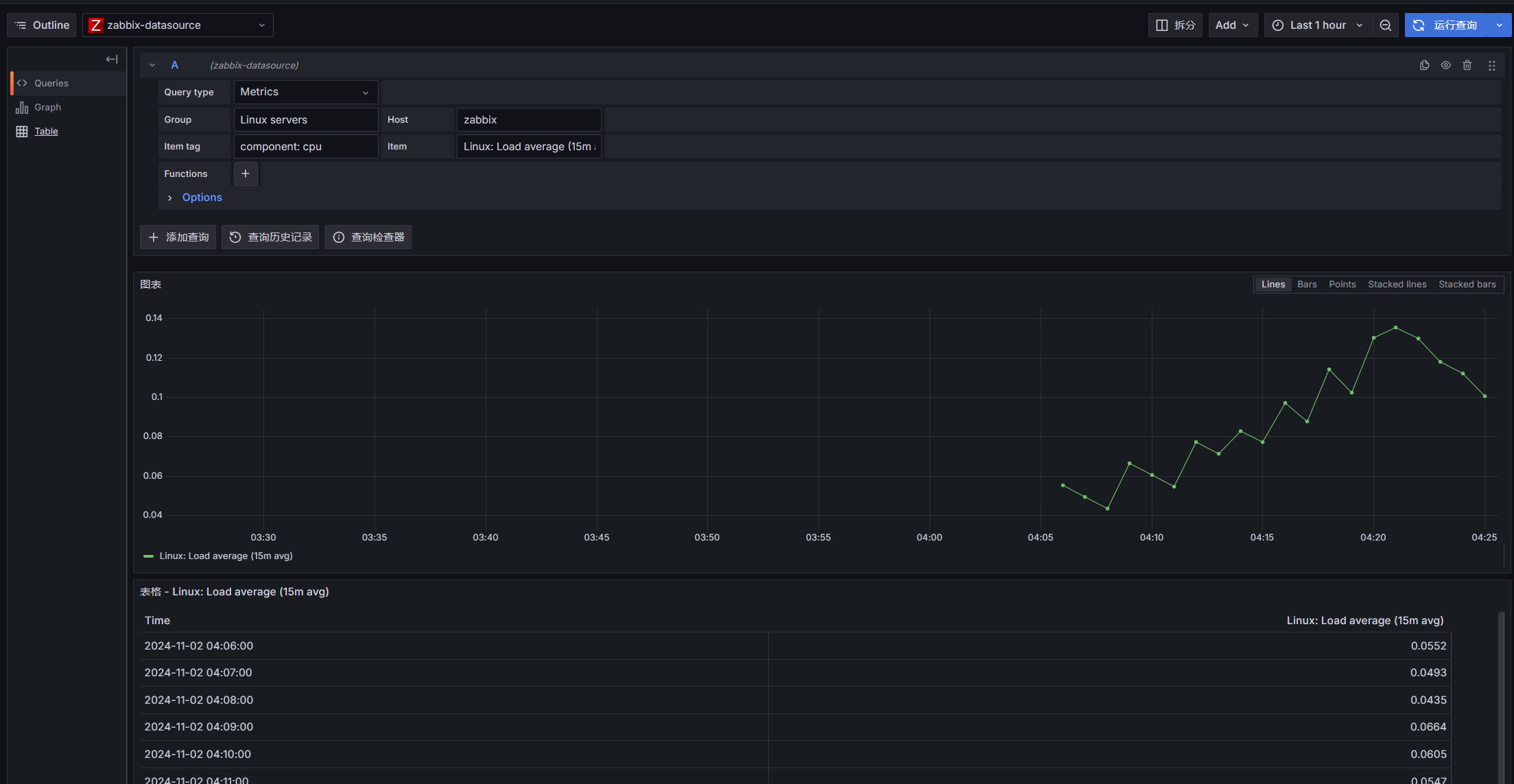

查看zabbix数据

image-20241102042600834

Prometheus ​

https://github.com/prometheus/mysqld_exporter

1. 安装mysql exporter ​
bash
wget https://github.com/prometheus/mysqld_exporter/releases/download/v0.15.1/mysqld_exporter-0.15.1.linux-amd64.tar.gz

tar -zxvf mysqld_exporter-0.15.1.linux-amd64.tar.gz
2. 配置相关参数 ​

创建监控账户

sql
CREATE USER 'exporter'@'%' IDENTIFIED BY 'exporter123' WITH MAX_USER_CONNECTIONS 3;
GRANT PROCESS, REPLICATION CLIENT, SELECT ON *.* TO 'exporter'@'%';

flush privileges;

创建配置文件

bash
vim .my.cnf
[client]
host=127.0.0.1
port=3307
user=exporter
password=exporter123

启动

bash
 ./mysqld_exporter --config.my-cnf=/root/mysql/mysqld_exporter-0.15.1.linux-amd64/.my.cnf
3. 配置告警 ​

mysql 下线告警配置

yaml
groups:
  - name: mysql_alerts
    rules:
    - alert: MySQLInstanceDown
      expr: mysql_up{instance="localhost:9104"} == 0
      for: 5m
4. 接入grafana ​

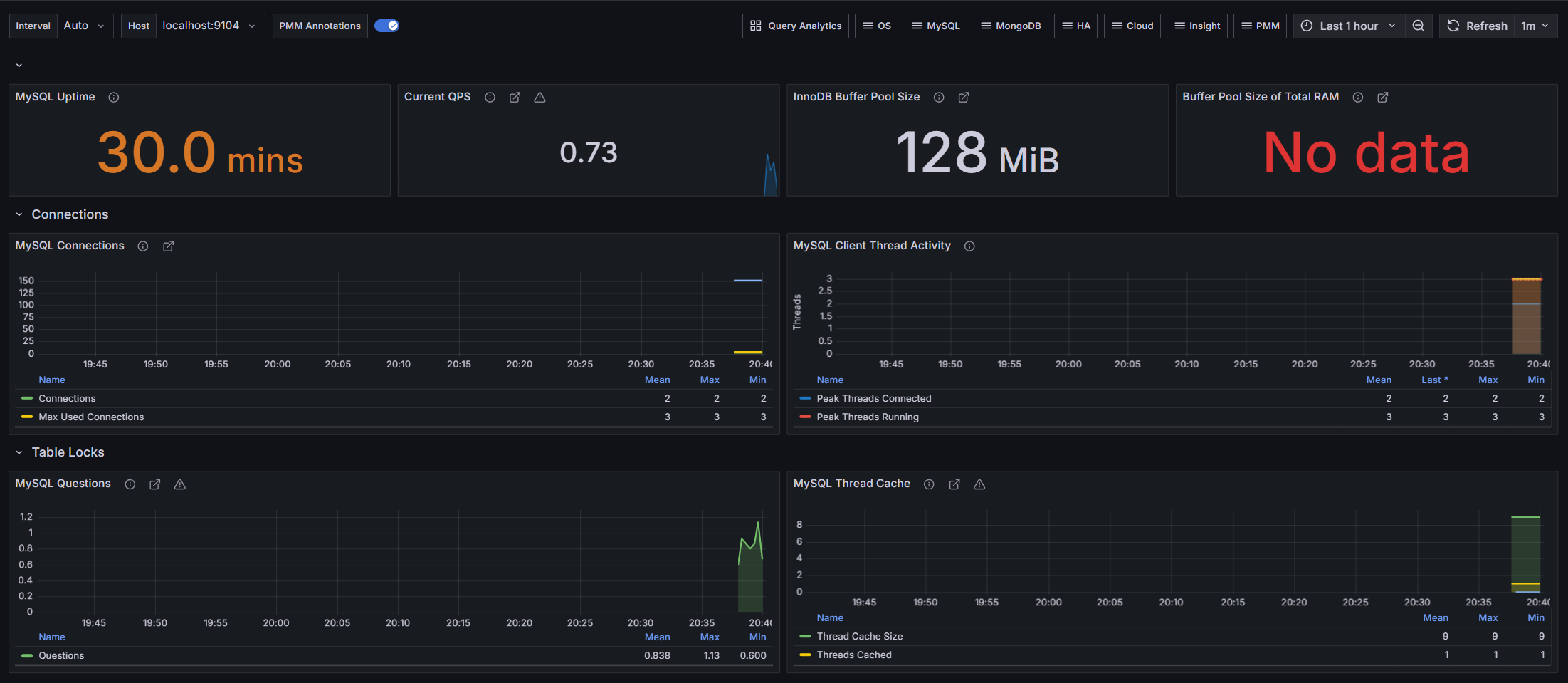

填写 Mysql 仪表盘ID Mysql仪表盘7362 复制状态仪表盘7371

image-20241103204114680
