RabbitMQ集群监控监控 ​

部署 ​

主机角色端口
192.168.116.159master5672，15672，25672
192.168.116.160worker-015672，15672，25672
192.168.116.162worker-025672，15672，25672
安装 RabbitMQ ​
bash
sudo apt-get install curl gnupg apt-transport-https -y

curl -1sLf "https://keys.openpgp.org/vks/v1/by-fingerprint/0A9AF2115F4687BD29803A206B73A36E6026DFCA" | sudo gpg --dearmor | sudo tee /usr/share/keyrings/com.rabbitmq.team.gpg > /dev/null
curl -1sLf "https://github.com/rabbitmq/signing-keys/releases/download/3.0/cloudsmith.rabbitmq-erlang.E495BB49CC4BBE5B.key" | sudo gpg --dearmor | sudo tee /usr/share/keyrings/rabbitmq.E495BB49CC4BBE5B.gpg > /dev/null
curl -1sLf "https://github.com/rabbitmq/signing-keys/releases/download/3.0/cloudsmith.rabbitmq-server.9F4587F226208342.key" | sudo gpg --dearmor | sudo tee /usr/share/keyrings/rabbitmq.9F4587F226208342.gpg > /dev/null

# cat cloudsmith.rabbitmq-erlang.E495BB49CC4BBE5B.key | sudo gpg --dearmor | sudo tee /usr/share/keyrings/rabbitmq.E495BB49CC4BBE5B.gpg > /dev/null
# cat cloudsmith.rabbitmq-server.9F4587F226208342.key | sudo gpg --dearmor | sudo tee /usr/share/keyrings/rabbitmq.9F4587F226208342.gpg > /dev/null

sudo tee /etc/apt/sources.list.d/rabbitmq.list <<EOF
## Provides modern Erlang/OTP releases
##
deb [arch=amd64 signed-by=/usr/share/keyrings/rabbitmq.E495BB49CC4BBE5B.gpg] https://ppa1.rabbitmq.com/rabbitmq/rabbitmq-erlang/deb/ubuntu jammy main
deb-src [signed-by=/usr/share/keyrings/rabbitmq.E495BB49CC4BBE5B.gpg] https://ppa1.rabbitmq.com/rabbitmq/rabbitmq-erlang/deb/ubuntu jammy main

# another mirror for redundancy
deb [arch=amd64 signed-by=/usr/share/keyrings/rabbitmq.E495BB49CC4BBE5B.gpg] https://ppa2.rabbitmq.com/rabbitmq/rabbitmq-erlang/deb/ubuntu jammy main
deb-src [signed-by=/usr/share/keyrings/rabbitmq.E495BB49CC4BBE5B.gpg] https://ppa2.rabbitmq.com/rabbitmq/rabbitmq-erlang/deb/ubuntu jammy main

## Provides RabbitMQ
##
deb [arch=amd64 signed-by=/usr/share/keyrings/rabbitmq.9F4587F226208342.gpg] https://ppa1.rabbitmq.com/rabbitmq/rabbitmq-server/deb/ubuntu jammy main
deb-src [signed-by=/usr/share/keyrings/rabbitmq.9F4587F226208342.gpg] https://ppa1.rabbitmq.com/rabbitmq/rabbitmq-server/deb/ubuntu jammy main

# another mirror for redundancy
deb [arch=amd64 signed-by=/usr/share/keyrings/rabbitmq.9F4587F226208342.gpg] https://ppa2.rabbitmq.com/rabbitmq/rabbitmq-server/deb/ubuntu jammy main
deb-src [signed-by=/usr/share/keyrings/rabbitmq.9F4587F226208342.gpg] https://ppa2.rabbitmq.com/rabbitmq/rabbitmq-server/deb/ubuntu jammy main
EOF


sudo apt-get update -y


sudo apt-get install -y erlang-base \
                        erlang-asn1 erlang-crypto erlang-eldap erlang-ftp erlang-inets \
                        erlang-mnesia erlang-os-mon erlang-parsetools erlang-public-key \
                        erlang-runtime-tools erlang-snmp erlang-ssl \
                        erlang-syntax-tools erlang-tftp erlang-tools erlang-xmerl


sudo apt-get install rabbitmq-server -y --fix-missing
配置主机名映射 ​
bash
cat <<EOF >> /etc/hosts
192.168.116.159 master
192.168.116.160 worker-01
192.168.116.162 worker-02
EOF

复制主节点 /var/lib/rabbitmq/.erlang.cookie 到其他节点

bash
sudo scp /var/lib/rabbitmq/.erlang.cookie root@192.168.116.157:/var/lib/rabbitmq/.erlang.cookie
sudo scp /var/lib/rabbitmq/.erlang.cookie root@192.168.116.158:/var/lib/rabbitmq/.erlang.cookie
chown rabbitmq:rabbitmq /var/lib/rabbitmq/.erlang.cookie

systemctl restart rabbitmq-server
worker-01 worker-02 加入集群 ​
bash
rabbitmqctl stop_app
rabbitmqctl reset
rabbitmqctl join_cluster rabbit@master
rabbitmqctl start_app

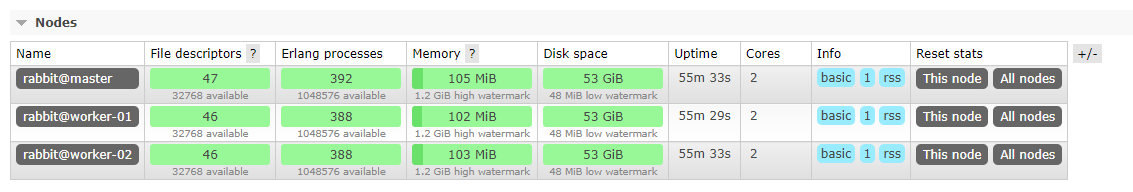

查看集群信息 ​
bash
rabbitmqctl cluster_status

# 创建登录管理页面账户
sudo rabbitmqctl add_user qiaoke qiaoke
sudo rabbitmqctl set_user_tags qiaoke administrator
sudo rabbitmqctl set_permissions -p / qiaoke ".*" ".*" ".*"

image-20241105224745422

RabbitMQ 监控要点 ​

延迟 ​
  • 消息处理延迟
  • 网络延迟
  • 吞吐量延迟
流量 ​
  • 消息发布速率
  • 消息消费速率
  • 队列深度
  • 连接数
错误率 ​
  • 队列过载和异常
  • 连接和通道错误
  • 死信队列
饱和度 ​
  • 队列深度饱和度
  • CPU，内存，磁盘使用率

Zabbix ​

三台主机安装zabbix-agent2 ​
bash
sudo wget https://repo.zabbix.com/zabbix/6.4/ubuntu/pool/main/z/zabbix-release/zabbix-release_latest+ubuntu22.04_all.deb
sudo dpkg -i zabbix-release_latest+ubuntu22.04_all.deb
sudo apt update
sudo apt install -y zabbix-agent2
修改配置文件 ​
bash
sudo vim /etc/zabbix/zabbix_agent2.conf

Server=192.168.116.128
ServerActive=192.168.116.128
Hostname=192.168.116.158  #节点IP

sudo systemctl restart zabbix-agent2.service
RabbitMQ 创建监控账户 ​
bash
rabbitmqctl add_user patrol patrol
rabbitmqctl set_permissions  -p / patrol "" "" ".*"
rabbitmqctl set_user_tags patrol monitoring

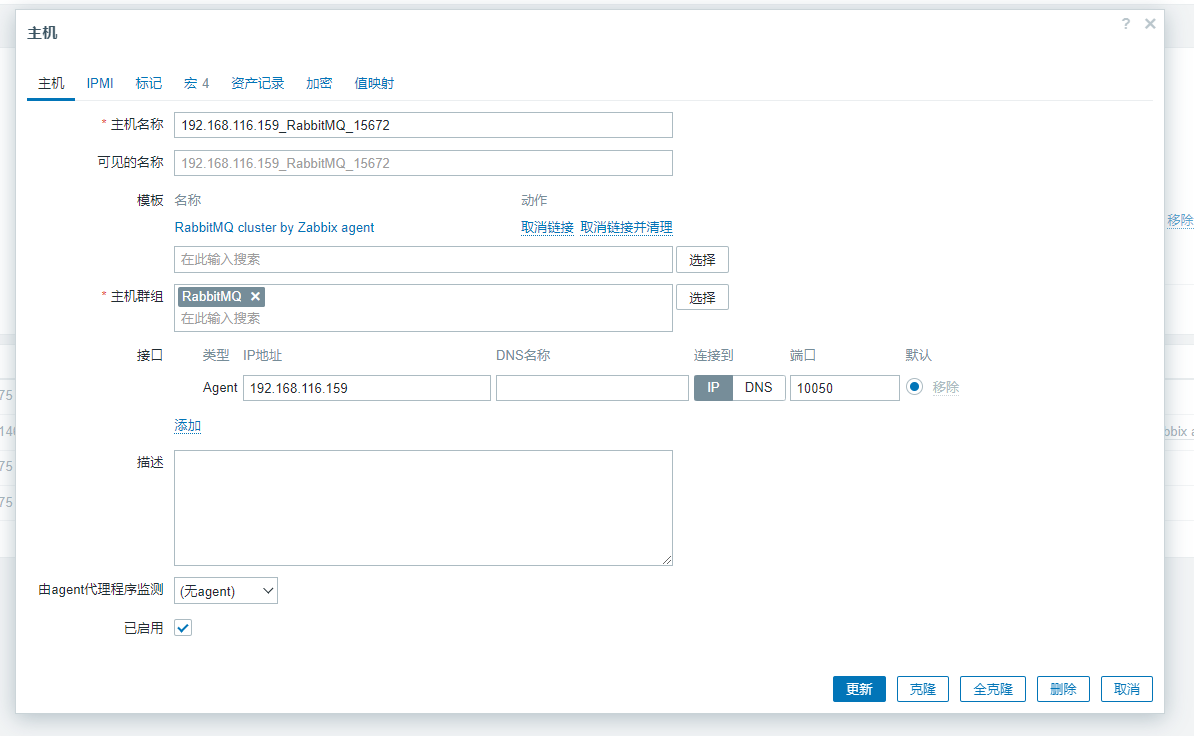

Zabbix 页面创建监控 ​

image-20241105232459671

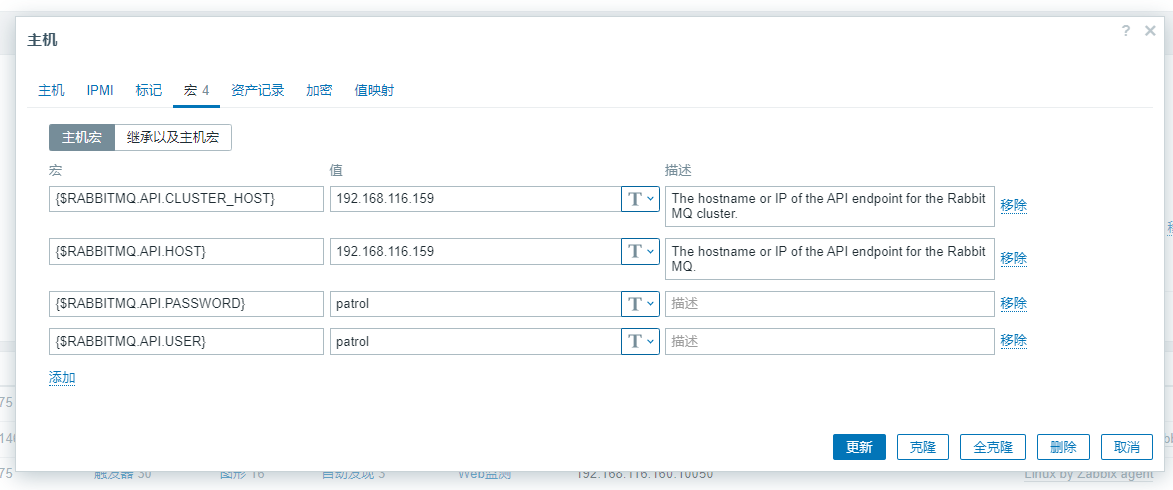

配置宏变量 ​

image-20241105232529048

Prometheus ​

RabbitMQ 开启 prometheus插件 ​
bash
rabbitmq-plugins enable rabbitmq_prometheus

# 获取指标测试
curl -s localhost:15692/metrics | head -n 3

修改 prometheus.yml 配置文件

bash
global:
  scrape_interval: 15s
  evaluation_interval: 15s

alerting:
  alertmanagers:
    - static_configs:
        - targets:
           - 192.168.116.128:9093

rule_files:
  - rules.yml
  - rules/*.yml


scrape_configs:
  - job_name: 'rabbitmq'
    static_configs:
      - targets: ['192.168.116.159:15692','192.168.116.160:15692','192.168.116.162:15692']
    metrics_path: /metrics
    scheme: http
    basic_auth:
      username: patrol
      password: patrol

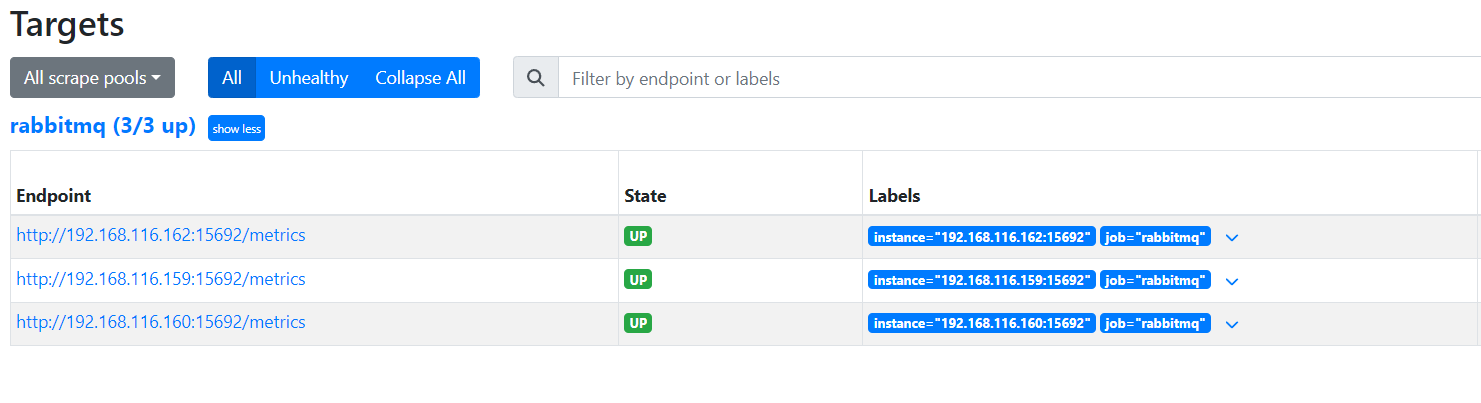

查看效果 ​

image-20241105233922317

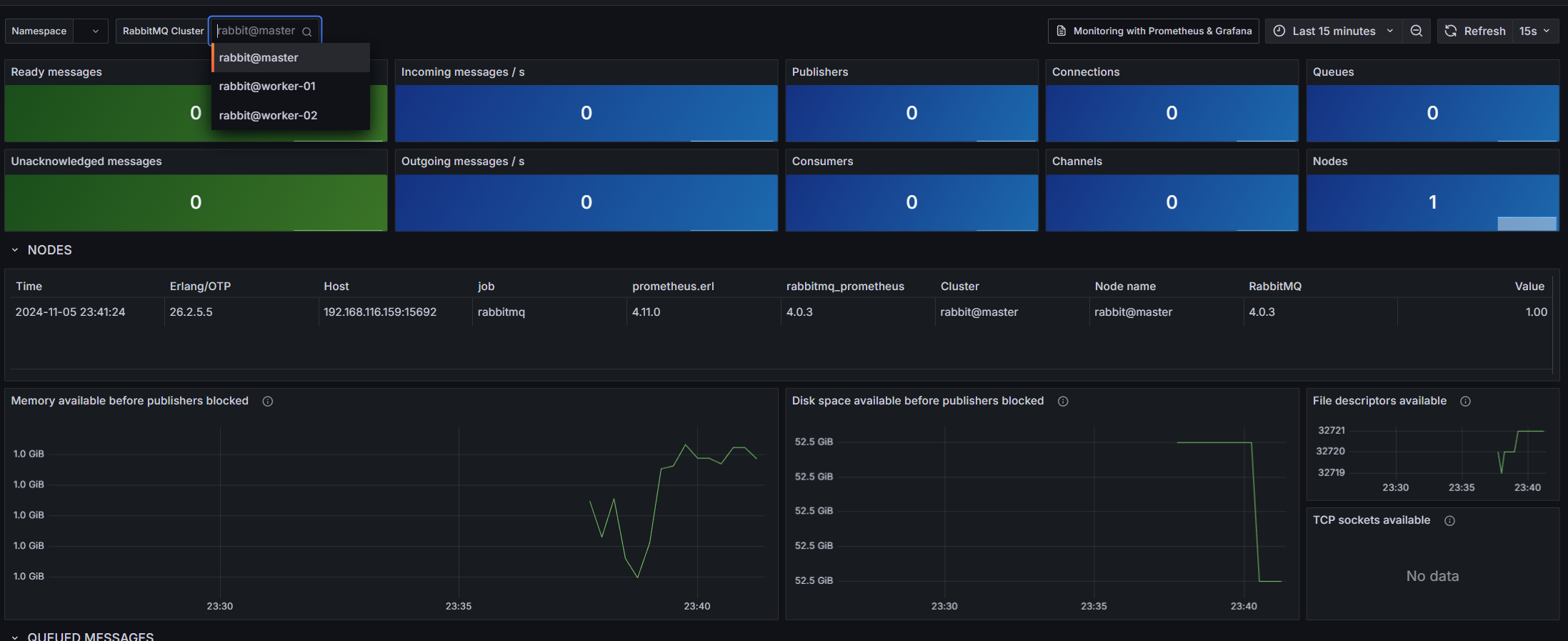

配置 Grafana 支持 ID 10991 ​

image-20241105234141356

配置告警 ​
bash
groups:
  - name: rabbitmq-alerts
    rules:
      - alert: RabbitMQInstanceDown
        expr: up{instance=~".*:15692"} == 0
        for: 1m
        labels:
          severity: critical
        annotations:
          summary: "RabbitMQ node {{ $labels.instance }} is down"
          description: "The RabbitMQ node has been down for more than 5 minutes."

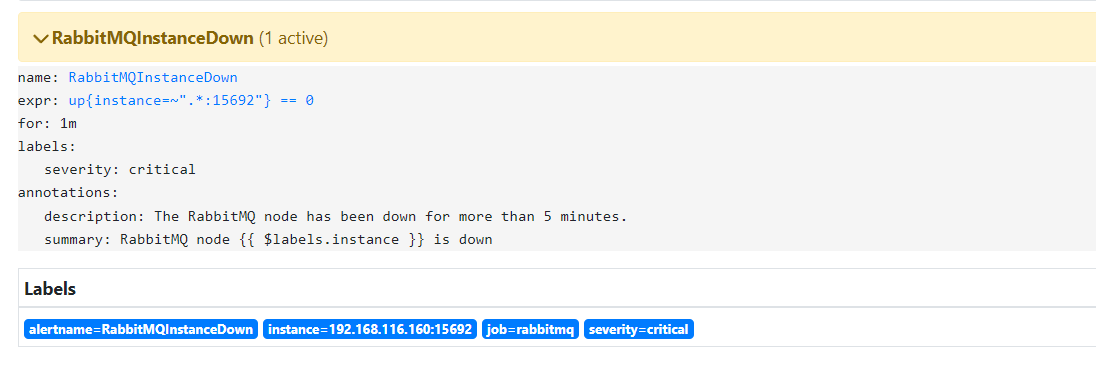

关闭一个实例，查看告警 ​

image-20241105235338703
